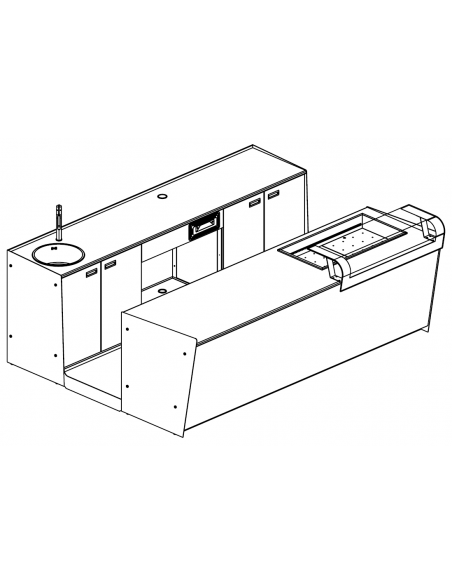

Bar counter and back counter – Refrigerated tank

Product Features :-

Bar counter and back counter – With refrigerated tank with glass countertop – N. 3 refrigerated cells Neutral compartment cm 100 – Coffee machine station – Sink ø 42 cm and mixer – Ventilated refrigeration – Motor on board – Power supply single-phase V230/1/50Hz – Dimensions Cm L 300 x P 232.5 x h 95.1

Product Information:-

Dimensions Cm 300 x 232.5 x 95.1 h

Refrigerated Cells N. 3 with neutral compartment cm100

Sink with Tap ø 42

Power supply Monophase – 230V-1Ph-50Hz

Origin Made in Italy

Standard CE

Warranty 12 Months

GENERAL FEATURES :-

SUPPORTING STRUCTURE made of tubular steel painted white in an oven at 180°C with epoxy powders, guaranteeing durability, with stiffening elements and adjustable feet for perfect levelling of the furniture.

CELL with ventilated refrigeration, to ensure higher performance and temperature uniformity inside the refrigerated compartment. External cell cladding, including doors and drawers (optional), in white prepainted sheet metal. Temperature operating +4°C/ +8°C. Test at 32°C with 60% U.R.

MOTOR on board placed in the special technical compartment protected by ventilation grill in white prepainted sheet metal. L’Refrigeration system consists of hermetic compressor, air-cooled condenser with copper tube and aluminum fins with fan, capillary-fed evaporator with copper tube and aluminum fins. Ventilated refrigeration with uniform air distribution through special conveyor located above the evaporator.

REFRIGERATED TANK for the display of food & beverage recessed in the cell whose refrigeration it exploits, made of stainless steel with Scotch-Brite finish, available in 1000 and 1400 mm modules. The tank is equipped with drainage for cleaning and liquid evacuation. Temperature operating +4°C/ +8°C. Test at 25°C with 60% U.R.
